Digitization has become the new norm in the AEC sector with 3D design and visualization as the flagbearers. 3D visualization tools are the heart and soul of an AEC professional’s design journey. To elevate their project’s planning and presentation, professionals round this sector are always on a lookout for unique innovative technologies. Here’s where Cesium’s newly announced Revit add-in takes the center stage!
This Revit add-in looks like it’s here to revolutionize the AEC workflow for the best. This powerful integration of Cesium x Revit blends the incredible design and visualization capabilities of Autodesk Revit with Cesium, the advanced 3D geospatial platform has opened the gates of infinite possibilities of the creation of immersive, context rich designs.
Imagine being able to seamlessly place your Revit models in their real-world locations, complete with accurate terrain, imagery, and even real-time data. This is no longer a distant dream but a tangible reality with Cesium’s latest offering. As we delve into the features and benefits of this groundbreaking add-in, prepare to discover how it can transform your workflow, enhance your decision-making process, and ultimately lead to more impressive and informed designs.
Introducing Cesium’s Revit Add-In
The fusion of Building Information Modeling (BIM) and geospatial technologies has long been anticipated in the AEC (Architecture, Engineering, and Construction) industry. Cesium’s new Revit add-in marks a significant leap in bridging the gap between detailed building models and their broader geographical context. This innovative tool empowers professionals to visualize and present their designs in ways previously unimaginable.
Cesium Ion is a powerful cloud platform for 3D geospatial data. The Cesium Revit add-in allows users to export their Revit models directly into Cesium Ion. This convergence enables designers to place their models in precise real-world locations with Cesium providing its vast array of global terrain and imagery data. The result is a contextually rich representation of architectural and engineering projects.
The add-in’s capabilities extend far beyond simple visualization. It opens up new avenues for collaboration and data analysis which leads to better decision making. AEC teams can now easily share their georeferenced models with stakeholders and conduct site analyses as true to life as possible based on real-world environmental factors. This level of integration between BIM and geospatial data is set to redefine industry standards and workflows.
For professionals who have long grappled with the limitations of traditional design software, Cesium’s Revit add-in represents a quantum leap forward. It addresses the critical need for contextual awareness in design, allowing for more sustainable built environments. As we explore the features and applications of this tool, it becomes clear that this add-in is definitely a catalyst for a new era of intelligent, location-aware design.
The new Design Tiler and Revit Add-In improve workflows and capabilities that place AECO content in a 3D geospatial context

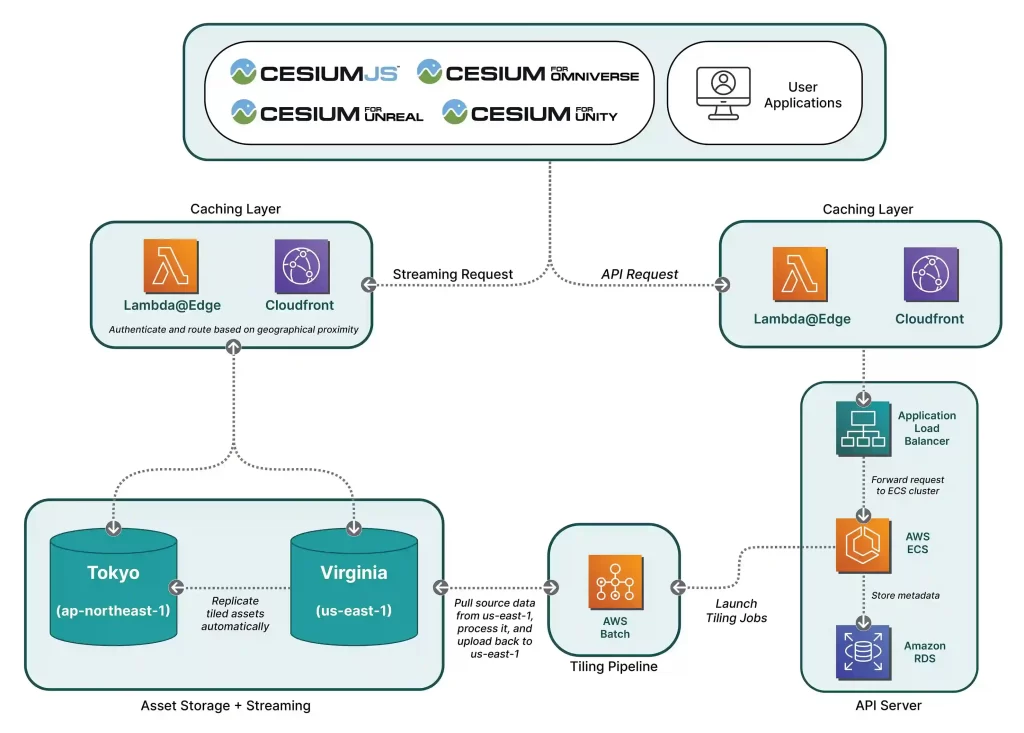

Key Features and Capabilities
Real-World Representation
Cesium’s new Revit add-in brings an interactive approach to 3D visualization and geospatial apps with its suite of powerful features that enable architects and engineers to engage with their designs in a real-world context. At the very core of this innovation is the ability to seamlessly integrate Revit models with Cesium’s advanced 3D geo mapping capabilities.

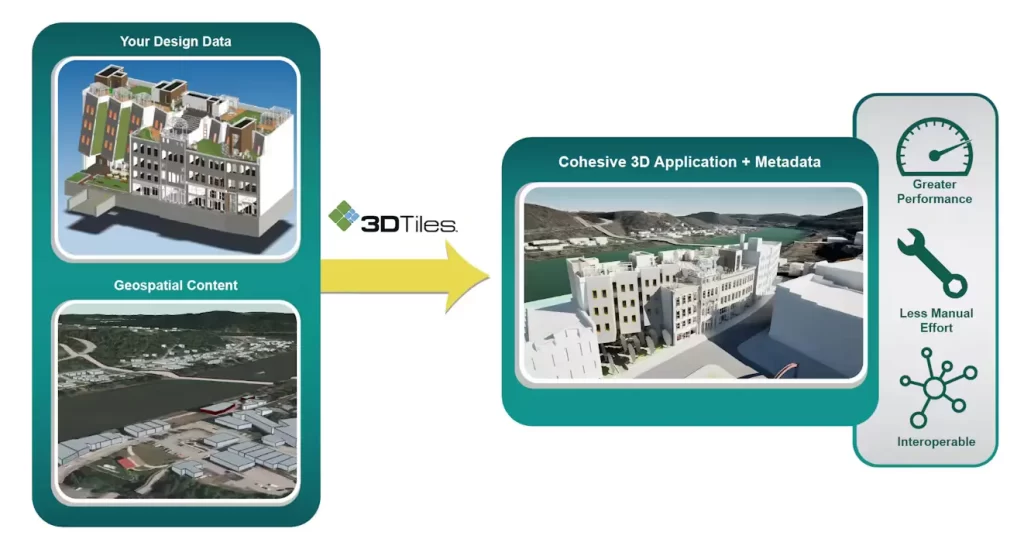

One of the standout features of this add-in is its ability to convert complex Revit files into 3D Tiles, a format optimized for streaming and rendering large-scale 3D geospatial content. According to AEC Magazine, “The new Revit Add-In and Design Tiler convert IFC and Revit files into 3D Tiles, supporting metadata, materials, and textures.” This conversion process is not just about visual representation; it’s about maintaining the integrity and richness of the original data.
The power of this feature becomes evident when we consider the scale at which it operates. The Cesium software can handle projects with “over 4 million individual objects and 800 million mesh triangles,” demonstrating its capability to manage even the most complex and detailed architectural models. This level of detail preservation ensures that designers can work with their models in a geospatial context without sacrificing the intricacies of their designs.
Moreover, the 3D Tiles format enhances the functionality of the models beyond mere visualization. They include metadata for querying, filtering, styling and analytics, enhancing, performance and interoperability. This metadata integration opens up new possibilities for data analysis and decision-making within the 3D geo mapping environment.
The Cesium Revit add-in also incorporates smart optimization techniques to improve performance. GeoWeek News notes that “The Design Tiler detects shared geometry and instances it in the exported 3D Tiles to improve streaming and rendering performance.” This feature ensures that even large-scale projects can be smoothly visualized and navigated within the geospatial context.
Perhaps one of the most significant advantages of this add-in is its compatibility with various platforms. These 3D tiles are compatible with Unreal Engine, Unity, NVIDIA Omniverse, etc. Amongst other platforms. This interoperability ensures that the 3D visualization work done in Revit can be seamlessly integrated into a wide range of applications and workflows, enhancing collaboration and expanding the potential use cases for the 3D geo mapped models.
By bridging the gap between detailed architectural modeling and geospatial representation, Cesium’s Revit add-in is setting a new standard for contextual design and analysis in the AEC industry. It’s not just about seeing a building in its location; it’s about understanding how that building interacts with its environment, analyzing its impact, and making informed decisions based on real-world data – all within a single, integrated platform.
Integration Process
Step-by-Step Guide to Connecting Revit to Cesium Ion
Integrating Revit with Cesium Ion is a straightforward process. This integration can significantly enhance your 3D design workflow. This guide will walk you through the steps to connect your Revit projects to the powerful geospatial capabilities of Cesium Ion. Let’s get started!
Step 1: Install the Cesium Revit Add-In:
- Download the Cesium Revit Add-In from the official Cesium website or Autodesk App Store.
- Once the installation process is done, restart Revit to ensure the add-in is properly loaded.
Step 2: Set Up a Cesium Ion Account:
- If you don’t already have one, create a free account on the Cesium Ion platform. Log in to your account and navigate to the dashboard.

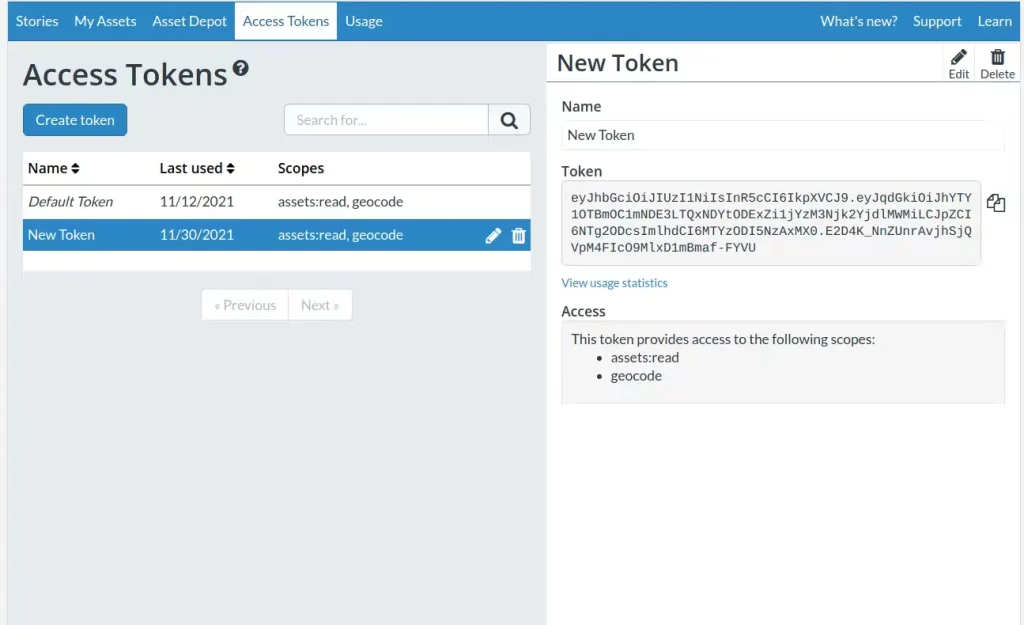

Step 3: Generate an Access Token:
Source:cesium.com
- In your Cesium Ion dashboard, go to the “Access Tokens” section.
- Click on “Create token” and give it a name (e.g., “Revit Integration”).
- Ensure the token has the necessary permissions for uploading and managing assets.
- Copy the generated token to your clipboard.
Step 4: Configure the Cesium Add-In in Revit:
- Open your Revit project.
- Locate the Cesium tab in the Revit ribbon.
- Click on the “Settings” button within the Cesium tab.
- Paste your Cesium Ion access token into the designated field.
- Click “Save” to store your credentials.
Step 5: Prepare Your Revit Model:
- Ensure your Revit model is georeferenced correctly.
- Verify that the project location and orientation are accurately set.
Step 6: Export Your Model to Cesium Ion:
- In the Cesium tab, click on the “Export to Cesium Ion” button.
- Choose the elements of your model you wish to export.
- Select any additional options, such as including textures or specific levels of detail.
- Click “Export” to begin the process.
Step 7: Monitor the Upload Process:
- A progress bar will appear, showing the status of your upload.
- Once complete, you’ll receive a confirmation message with a link to view your model in Cesium Ion.
- Click on the provided link to open your model in Cesium Ion.
- Explore your Revit model in its real-world context using Cesium’s 3D globe.
- Use Cesium Ion’s sharing features to collaborate with team members or clients.
Pro Tip: Remember to keep your Cesium Revit Add-In updated to ensure you have access to the latest features and improvements. With this powerful connection established, you’re now ready to leverage the full potential of geospatial data in your architectural and engineering workflows.
By following these steps, you’ll successfully connect your Revit project to Cesium Ion, unlocking a new dimension of geospatial context for your designs.
Practical Applications and Use Cases
Real-World Context
Cesium’s integration with Revit opens up a myriad of practical applications that revolutionize how AEC professionals approach their projects. Understanding what Cesium is used for in this context is crucial to appreciating its full potential in the AECO (Architecture, Engineering, Construction, and Operations) industry.
One of the primary uses of Cesium in conjunction with Revit is to provide real-world context for architectural and engineering designs. According to GeoWeek News, “The Revit Add-In integrates with Cesium ion to place and visualize Revit design data in real-world environments with a one-click export capability.” This functionality allows professionals to:
Site Analysis and Planning:
- The new Cesium x Revit collaboration will help AEC professionals evaluate the impact of topography on building design.
- It can also be used to assess solar exposure and shadows throughout the year with its real-time datasets.
- This add-in will help you analyze viewsheds and sightlines from different perspectives
Urban Planning and Development:
- For urban planning, where the site scale is vast, this tool will help visualize proposed structures within existing cityscapes.
- It can be used to evaluate the impact of new developments on surrounding areas, to study the micro and macro climate of a site.
- It will help you plan infrastructure improvements with accurate geospatial data.
Environmental Impact Studies:
- Assess how buildings interact with local ecosystems with this add-in to get an upper hand on green building solutions.
- For disaster resilience and climate -conscious design Cesium add- in in Autodesk Revit will help analyze potential flood risks and drainage patterns
- With the data driven approach and accuracy provided by Cesium you can study the effects of construction on local microclimates.
Stakeholder Communication:
- Create immersive presentations for clients and investors
- Facilitate public engagement with interactive 3D models
- Improve collaboration among project teams with shared geospatial context
Cesium’s compatibility capabilities facilitate interoperability. This interoperability allows for:
Advanced Simulations:
Conduct realistic traffic flow simulations around new structures
- Model pedestrian movement and accessibility in urban environments
- Simulate natural disaster scenarios for resilience planning
Virtual Reality (VR) and Augmented Reality (AR) Applications:
Create immersive VR walkthroughs of proposed buildings in their actual locations
- Develop AR applications for on-site visualization of projects
- Enhance training and safety protocols with geospatially accurate simulations
You would like to explore – Difference between Virtual Reality and Augmented Reality
Data-Driven Decision Making:
- Integrate real-time sensor data with 3D models for smart city applications
- Analyze energy efficiency based on building orientation and local climate data
- Optimize construction logistics using accurate terrain and infrastructure information
The ability to seamlessly place detailed architectural models within a global geospatial context not only enhances the design process but also opens up new possibilities for innovation in the built environment.
As the integration between BIM and geospatial technologies continues to evolve, we can expect to see even more sophisticated applications emerge, further blurring the lines between virtual design and real-world implementation. Cesium’s role in this evolution is pivotal, providing the tools necessary to bridge the gap between detailed architectural modeling and comprehensive geospatial understanding.

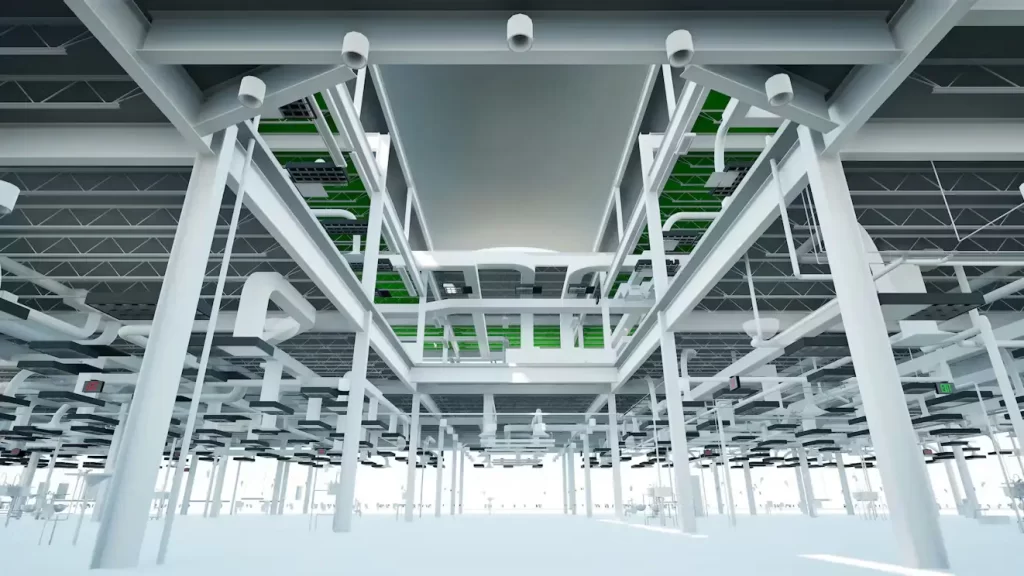

Sample IFC data including structure and MEP as 3D Tiles. Sample data courtesy of BSI (2020) “Medical-Dental Test Files,” buildingSMART International.
Conclusion and Next Steps
Integrating Cesium’s Revit Add-In into Your Workflow
The introduction of Cesium’s Revit add-in marks a significant leap forward in the realm of 3D design and geospatial integration. This powerful tool bridges the gap between detailed architectural modeling and real-world context, offering unprecedented opportunities for visualization, analysis, and decision-making in the AECO industry.
By taking these steps, professionals can position themselves at the forefront of this technological advancement, delivering more informed, contextually aware, and impactful designs. The Cesium Revit add-in is not just a tool; it’s a gateway to a new era of geospatially intelligent architecture and engineering.
As traditional methods take a backseat and technology continues to rise, we can expect even more sophisticated features and integrations. The future of design lies in this seamless blend of detailed modeling and global context, and Cesium’s Revit add-in is, setting the stage for a whole new ballgame and pushing boundaries like never before.
As an AEC professional, we need to keep an open mind towards such innovative technologies. Let’s add the Cesium add-in into our Revit toolkit and let’s be well-equipped to tackle the complex design challenges of tomorrow, today.
